ADDON

КОМПОНЕНТНЫЙ ИСТОЧНИК
  • For phosphorous or arsenic dimer flux production
  • A low cost and easy alternative to the cracker source
  • Uses GaP (or GaAs) loading material (P2 / Ga @ 103)
  • As easy to operate as a standard group III cell.
  • Available in models adapted for all types of R & D or production reactors

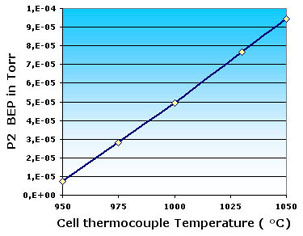

Fig.1:This curve gives the Phosphorus dimere BEP values versus the compound source temperature.
(Source baffle extremity to substrate distance is 120 mm)
set ramp
measered flux

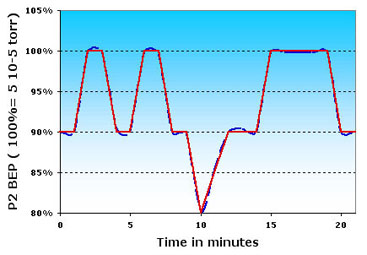

P2 flux modulation driven by a standard PID controller in ramping mode.

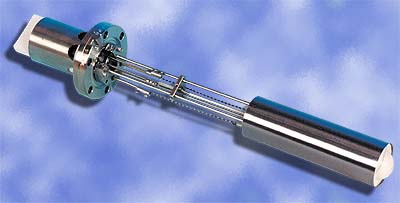

SIMPLE PHOSPHORUS P2 BEAM CELL FOR SOLID SOURCE MBE
This cell produces a pure P2 beam from the evaporation of GaP material. The separation between P2 and Ga is made within a special Trapping Baffle Unit placed at the mouth of the GaP cell crucible. The ratio between P2 and P4 is higher than 150 when P is produced by GaP effusion. Thus very little Pwhite deposition on to the system wall is observed with this type of cell. The low vapor pressure of P2 over GaP allows work at medium/high cell temperatures. This gives precise, stable and reproducible flux adjustments and avoids loss of GaP charge during bakeout of the system. Demonstrated results (red laser structures, pseudomorphic InGaP/InGaAs/GaAs HEMT...) show that this type of cell gives P2 beams with better purity and cleanliness than other more sophisticated methods.

BENEFITS:
Ease of use and installation.
Full compatibility with the standard ion pumping.
Stable and reproducible flux.
High P4 rejection ratio. ( P2/P4 is about 2.102. Equivalent to a cracking efficiency higher than 99,5%)
High Ga rejection ratio (Ga/P is about 10-3 )
Virtually no Pwhite accumulation. No loss of source material during bakeout of the system.
High material efficiency: 1g of Phosphorus for 10µm of film.

OPERATING PRINCIPLE:
The cell crucible is loaded with the compound material. The evaporated species (Ga and P2) flow through PBN cold baffles in which the Ga portion recrystallizes into GaP leaving the Phosphorus in excess. The majority of the P molecules then exits through the baffle aperture. This process is very efficient and only a very weak
Ga parasite component is found in the final beam. Parasitic Ga fluxes lower than 2 x 10-11 Atoms/cm2 are generally reported for P2 BEP fluxes in the 10-6 Torr range
( 0.3 to 1 µm/h of GaInP).

BEP and load efficiency.
Reported temperatures/ P2 BEP are shown in figure 1. An average total thickness of 90 µm of InGaP layer growth is reported for a 55 g of poly GaP load corresponding to the 35cc compound cell model.

Models
Models may be adapted for each system including home-made or specially designed ones.
They are all compatible with existing power-supplies and electrical connections.
MBE
Manufacturer		 MBE
Model Number		 Min
Connecting Flange		 Crucible Capacity (cc) Cell
Model Number		 Crucible
Model Number
RIBER 1000/32/2300 DN40CF
2,75" (70mm)		 35 GAP35RB3 835035
EPINEAT COMPACT 21 DN63CF
4" (114 mm)		 85 GAP85RIE 863085
DN100CF
6" (152 mm)		 85 GAP85RIE 863085
48/49 DN150CF
10" (254 mm)		 500 GAP500RB9 80500
VG

All compound cells have cell body Integrated Water Cooling (W)

V80 DN63CF
4" (114 mm)		 85 GAP85VG8W 863085
V90 DN63CF
4" (114 mm)		 85 GAP85VG9W 863085
V100 DN100CF
6" (152 mm)		 500 GAP500VG1W 800500
Varian / Intervac Gen II DN40CF
2,75" (70mm)		 35 GAP35VA2 835035
Mod Gen II DN63CF
4" (114 mm)		 85 GAP85VA3 863085
Others
and manufacturers not listed above Integrated Water Cooling is a factory option*		 Flange Size DN40CF
2,75" (70 mm) or higher		 35 GAP35AD1 835035
Flange Size DN63CF
4" (114 mm)
or higher		 85 GAP85AD2 863085
Flange Size DN100CF
6" (152 mm)
or higher		 500 GAP500AD3 800500
* When needed Integrated Water Cooling can be added as a factory option (W).
Do not hesitate to contact ADDON if your system is not listed above or if your system is a custom designed one.
